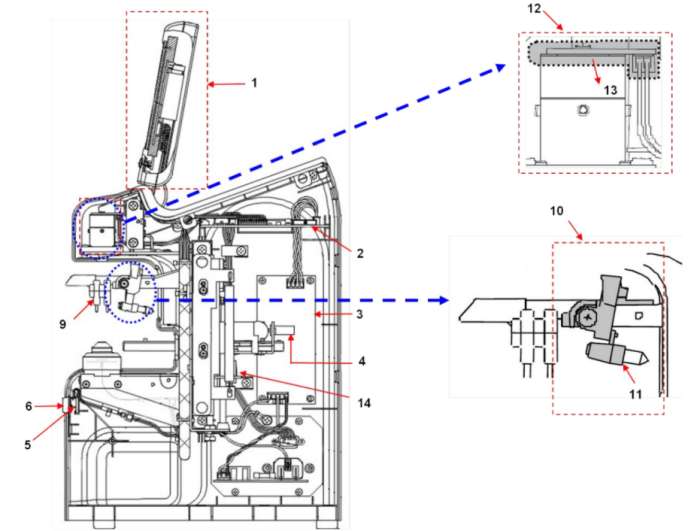

Internal subset
No. | Reference | Description | Qty | Info |
|---|---|---|---|---|
| 1 | CLE614 | LCD assembly | ||
| 2 | CLE608 | Motherboard | ||
| 3 | CLE609 | Power unit | ||
| 4 | CLE629 | Push button | ||
| 5 | CLE612 | Storage button board | ||
| 6 | CLE623 | Memorising button | ||
| 9 | CLE602 | Lens grip | ||
| 10 | CLE689 | Marking pins subset | ||
| 10 | CLE684 | Marking pins subset | ||
| 11 | CLE681 | Marking pins | ||
| 11 | CLE690 | Marking pins | ||
| 12 | CLE628 | LED circuit and support | ||
| 13 | CLE627 | LED circuit | ||
| 14 | CLE630 | Push button |
