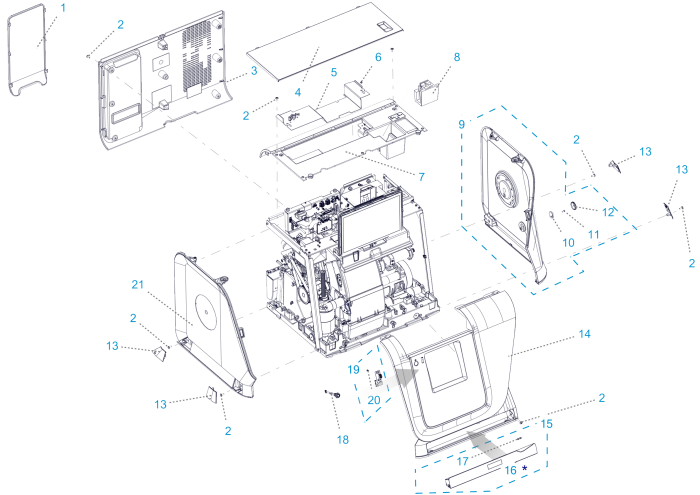

Housing
No. | Reference | Description | Qty | Info |
|---|---|---|---|---|
| 1 | M9060BS | Cable cover | 1 | |
| 2 | M90K02 | Edger cover screws kit | 5 | |
| 3 | M90S631 | Back cover equiped specific 115 V | 1 | |
| 4 | M9060IS | Upper hatch equipped | 1 | |
| 5 | M9010I | Rear metal panel | 1 | |
| 6 | CV6992 | Torx M3x6 screw | 2 | |
| 7 | M90S64 | Upper cover equipped | 1 | |
| 8 | M9060U | Foam | 1 | |
| 9 | M90S62 | Right cover equipped | 1 | |
| 10 | M9060T | Motor safety hatch | 1 | |
| 11 | CV6704 | CHC screw M4x8 | 1 | |
| 12 | M9060L | Motor screw hatch | 1 | |
| 13 | M90K01 | Side covers kit | 1 | |
| 14 | M90S60 | Front cover equipped with sticker ES 800 | 1 | |
| 15 | M90S68 | Lower storage | 1 | |
| 16 | M9060V | Drawer mat | 1 | |
| 17 | CH7000 | Lower storage pusher | 1 | |
| 18 | M9061C | Power switch button | 1 | |
| 19 | M90R03 | USB board | 1 | |
| 20 | CV6978 | Torx 30x08 ejot screw | 2 | |
| 21 | M90S61 | Left cover equipped | 1 |
