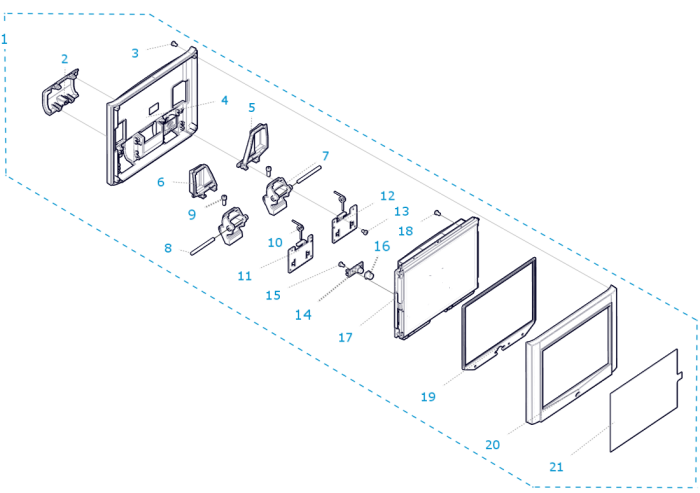

Screen
No. | Reference | Description | Qty | Info |
|---|---|---|---|---|
| 1 | M40S90 | Equipped screen subset | 1 | |
| 2 | M4021E | Screen Hatch | 1 | |
| 3 | CV6142 | CBL screw 3×6 | 4 | |
| 4 | M2420J | Rear screen housing | 1 | |
| 5 | M4021G | Left Screen command | 1 | |
| 6 | M4021D | Right Screen command | 1 | |
| 7 | M4021H | Screen Base | 2 | |
| 8 | L1421M | Screen command shaft | 2 | |
| 9 | CV6680 | CHC screw 5×12 | 2 | |
| 10 | L1421K | Lever spring | 2 | |
| 11 | L1421L | Left lever plate | 1 | |
| 12 | L1421R | Right lever plate | 1 | |
| 13 | CV6142 | CBL screw 3×6 | 8 | |
| 14 | L14R37 | Switch card | 1 | |
| 15 | CV6142 | CBL screw 3×6 | 2 | |
| 16 | L1421F | screen stud | 1 | |
| 17 | L14S84 | LED screen | 1 | |
| 18 | CV6142 | CBL screw 3×6 | 4 | |
| 19 | L1421J | Screen joint | 1 | |
| 20 | M2420I | Front screen housing | 1 | |
| 21 | L1421S | Screen print film protector screen | 1 |
