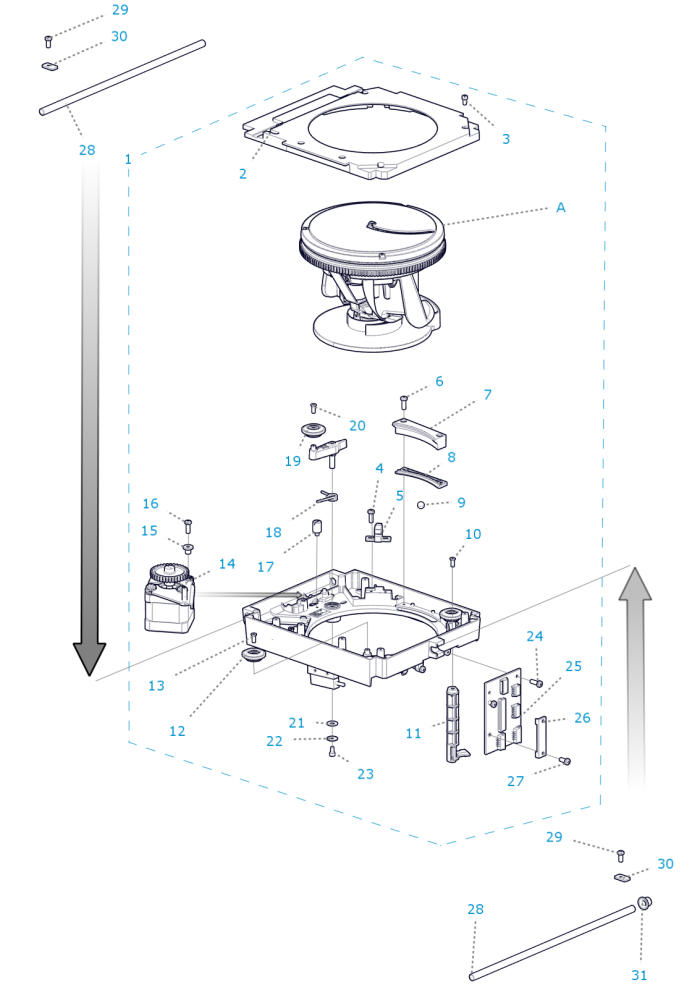

Transfer frame 1/2 before serial no. 111144 - Tracing table (L11, L12, L13, L14 2.0, L20)

No.	Reference	Description	Qty	Info
1	L11S57	After Sale Service subset plate	1
2	L1110G	Transfer housing	1
3	CV6624	CHC screw 2.5×8	4
4	CV6148	CBLZ screw 3x8	2
5	CE2091	Wired cell	1
6	CV6148	CBLZ screw 3x8	2
7	L1110P	Hold of the crown	Epuisé
8	L1110I	Plate limit	1
9	L1110H	Ball limit	1
10	CV6433	F/90 screw 2.5×8	1
11	L1110D	molded column guide	1
12	X91S12	Sealed roller	2
13	CV6433	F/90 screw 2.5×8	1
14	L11S54	Theta equipped motor	1
15	CI1004	MU3 washer	2
16	CV6148	CBLZ screw 3x8	2
17	L1110J	Arm stop screw	Epuisé
18	L1110C	Tension spring de Arm	1
19	X91S12	Sealed roller	1
20	CV6433	F/90 screw 2.5×8	1
21	CI3056	Onduflex washer 53 05 11	1
22	CI1020	LD washer	1
23	CV6623	CHC screw 2.5×6	1
24	CV6148	CBLZ screw 3x8	2
25	L11R04	Transfer card equipped	1
26	L1110M	Flange water transfer	1
27	CV6148	CBLZ screw 3x8	2
28	L1109B	Transfer shaft	1
29	CV6148	CBLZ screw 3x8	4
30	L1109G	Flange shaft	4
31	CR2061	Flanged bearing	1

A : Éclaté du cœur de lecture, voir section Cœur de lecture.
