Wiring diagram before serial no. 033132

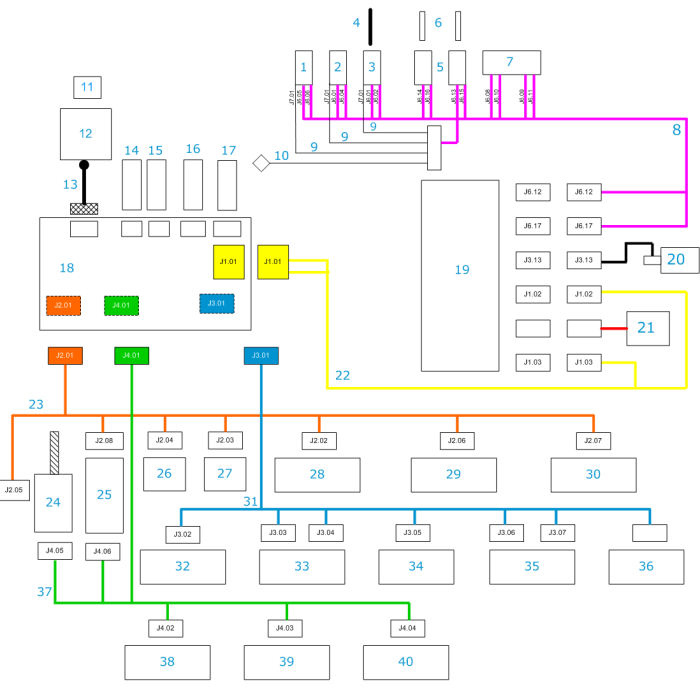

M22 - Wiring diagram old
No.
Reference
Description
Qty
Info
1CA1213Female plug CEE 221
2CA1213Female plug CEE 221
3CA1212Mains power socket1
4CA6320Europe power cable1
     N66R43Power cord US1
5CA2037Fuse holder2
6CA1035Time-lag fuse 4A 5×202
7CA1214Carling Switch 200-230V circuit-breaker1
     CA1215Carling Switch 100-120V circuit-breaker1
8M24T06Mains loom1
9M24T06Mains loom3
10M24T08Earth cable braid for electronic panel1
11M22S05Switch card1
12M22S060LCD Screen1
13L14R34Screen cable1
14M22MS2Update USB key1
15M22MS1Programmed M22 SD card1
16DOUA24barcode reader + adhesive support1
17CA6322RJ45 cable1
18M24S102Fitted motherboard1
19M22S030Power module1
20M24S530Wired wheel motor1
21M22S71GCD moduleÉpuisé
22M24T01Motherboard power cable braid1
23M24T02Network loom1
24H02S13Reproduceur1
25CA8147Lens rotation motor1
26M24S32Left feeler1
27M24S31Right feeler1
28N82S42Carriage initialisation cell1
29M24S21Strain gauge1
30M24R36Hall effect sensor1
31M24T03Mixed loom1
32CA8154Step-motor transfer1
33CA8152Retraction system motor reducer1
34M24R36Hall effect sensor1
35CA8074Fitted actuator motor reducer1
36M24S251Fitted play compensation motor1
37M24T04Power loom1
38M24R06Trough LED board1
39M24R09Door detection panel1
40M24S38Fitted door motor reducer1
